PAVEDRAIN FEATURES

OPEN JOINT SYSTEM

ONE STEP MAINTENANCE

OPEN JOINT SYSTEM

A large block allows for:

 Open Joints

Highest infiltration rate

No joint aggregate

STABILITY

ONE STEP MAINTENANCE

OPEN JOINT SYSTEM

AASHTO HS 25 loading

ADA Compliant

Freeze Thaw Testing

High Strength Concrete Unit

ONE STEP MAINTENANCE

ONE STEP MAINTENANCE

ONE STEP MAINTENANCE

Vacuum surface area

No refilling of joints

Original infiltration restored

PaveDrain Infiltration Test Monroeville Library 2023

In 2021 PaveDrain was installed at the Monroeville Library to eliminate flooding that occurred at the entrance.  In 2023 we performed an Infiltration Test that demonstrated  the outstanding performance of  PaveDrain.  No maintenance had been performed since the installation.  PaveDrain infiltrated at >1600in/hr. Watch this short video

PAVEDRAIN: THE SUSTAINABLE PERMEABLE SURFACE

PaveDrain Arch Unit

PaveDrain Solid, End and Half Units

The Arch in the PaveDrain unit allows for an additional 1" of stormwater storage.

PaveDrain Solid, End and Half Units

PaveDrain Solid, End and Half Units

Solid units provide for transition from adjacent area to PaveDrain area.  Half and End units allow for consistent appearance of the edge of the PaveDrain area.

Typical Cross Section

Minimum 4-6" of 57 Limestone (PennDOT 2B) a layer of BiAxial geogrid and a layer of GeoTextile; no fine aggregate required

Available Colors

Available Colors

PaveDrain units are available in a variety of earth tones.  Colors can be mixed to create unique architectural patterns.


Bike Paths

Available Colors

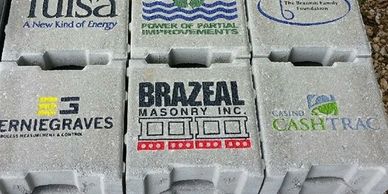

Logo Blocks

Green for a sustainable permeable bike path  and walkways

Logo Blocks

Available Colors

Logo Blocks

Logo Block to customize and brand your project.

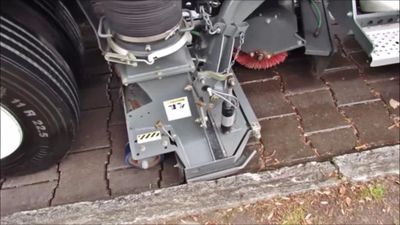

PAVEDRAIN MAINTENANCE

One Step Maintenance

PaveDrain is an open joint system: no aggregate infill between the units is required.  Therefore when cleaning is required to maintain infiltration one step maintenance with the use of a VacTruck  is all that is needed.  Smaller PaveDrain areas can be maintained with the use of a hand operated PaveDrain Vac Head.  Large PaveDrain areas can be maintained quickly and efficiently without much interference to the area....similar to street sweeping.  The open joint system require less frequent maintenance than other pavers.  Ease  of maintenance and the open joint system make PaveDrain the sustainable permeable solution.

Photo Gallery

    Downloads

    PaveDrain Typical Cross Section (pdf)Download
    PaveDrain-Arched-Block (pdf)Download
    PaveDrain Specification Ver 1.7 BAUER (pdf)Download
    PaveDrain Maintenance Manual (pdf)Download
